Guide - How to Flash Stock Firmware on Android Lenovo Vibe P1m.

Flash Stock Firmware Lenovo Vibe P1m. We on this guide will show you how to flash stock Firmware on Lenovo Vibe P1m, You can follow this guide if you have downloaded and installed any custom ROM on your Lenovo Vibe P1m, And you want to revert back to the original version Android operating system which came out of the box. On this guide required your Lenovo Vibe P1m has root access. So, before you proceed flash on this Android device you must root it first. Please be ware, that rooting and flashing custom ROMs results breaking the warranty of Lenovo Vibe P1m device. We is not responsible for any phone damage which is incurred during Custom ROMs flashing process.

Lenovo Vibe P1m is device released on 2015, September. comes with Android OS, v5.1 (Lollipop) and supp oerted with Mediatek MT6735P, Quad-core 1.0 GHz Cortex-A53 CPU, GPU  Mali-T720MP2, combined with 2 GB of RAM and 8 MP of Main camera and 5 MP on secondary camera.

Prepare this before flash Lenovo Vibe P1m.

1. Make sure you have backup all data and file stored on Internal memory Lenovo Vibe P1m
2. Make sure you have at least 80% of battery capacity
3. Root your Lenovo Vibe P1m devices, see this guide to root it.
4. Download SP Flash Tool 5.1532. Here
5. Download Lenovo Vibe P1m Stock Firmware. Here


6. Make sure you have enable USB Debugging on your Android Lenovo Vibe P1m device.
• Go to Settings ->Developer Options -> USB Debugging.
• If Developer Options is not appear under settings menu. You can enable it by going to :
• Settings > About Phone > Device Info and tap on Build Number for about 7-8 times. And then go back and follow previous step.

ROM Description.

1. ROM Version : S025_150924
2. Android Version : 5.1
3. ROM Type : VIBE UI
4. ROM Author/credits : Lenovo Forums
5. Feature : All Stock Features
6. ROM Bit : 64

Guide to Install Stock ROM on Lenovo Vibe P1m.

1. You must download SP Flash Tools and the custom ROM from download link above.
2. Then, extract SP Flash tool and TWRP recovery on the specific folder on your computer, we recommended you exract it on desktop.
3. Then remove your Sim card and SD Card  if installed.
4. Next, Connect your Lenovo Vibe P1m to Computer, while holding the power button and volume up. The PC will detect the new hardware, just ignore it.

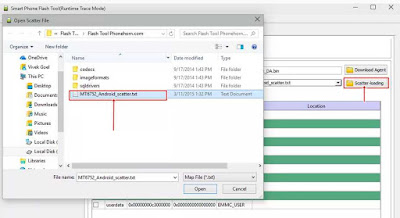

5. Open SP flash tool software and click scatter load. find Lenovo Vibe P1m scatter storage location earlier. (on desktop).

   MT6752 scatter

6. In the Scatter Loading field go to the folder where you extracted the Flash Tool and select target_bin



   Flash / Install Firmware Lenovo VIBE S1.

7. Then you click options ->Download -> then check DA DL all with checksum.



   Flash / Install Firmware Lenovo VIBE S1.

8. On download tab, ensure you have selected download only option from dropdown menu, see below picture.



   Flash / Install Firmware Lenovo VIBE S1.

9. Then, click download button on top right and connect your Lenovo Vibe P1m with USB cable in phone switch off position.







   Flash / Install Firmware Lenovo VIBE S1.

10. Process will run automatic, and you can see the red stripe showing download percentage at bellow
11. When your process complete, you can see a green circle with tick mark.



    Flash / Install Firmware Lenovo VIBE S1.

12. Now disconnect your Lenovo Vibe P1m
13. Then, start your Lenovo Vibe P1m. (remember, on the first booting it will take a long time to start)
14. Success. enjoy.
